SPECIFICATIONS

100% leak tested: Yes

Brand Name: NONE

Centre distance between ports: 50 mm

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Main Size: 1"

Main Tube: Stainless steel S304

Material: Brass

Model Number: PT6102

Nipple: Stainless steel S304

Origin: Mainland China

Type: Floor Heating Parts

Working Pressure: 10bar

Working Temperature: From -10 ℃ To +95 ℃

semi_Choice: yes

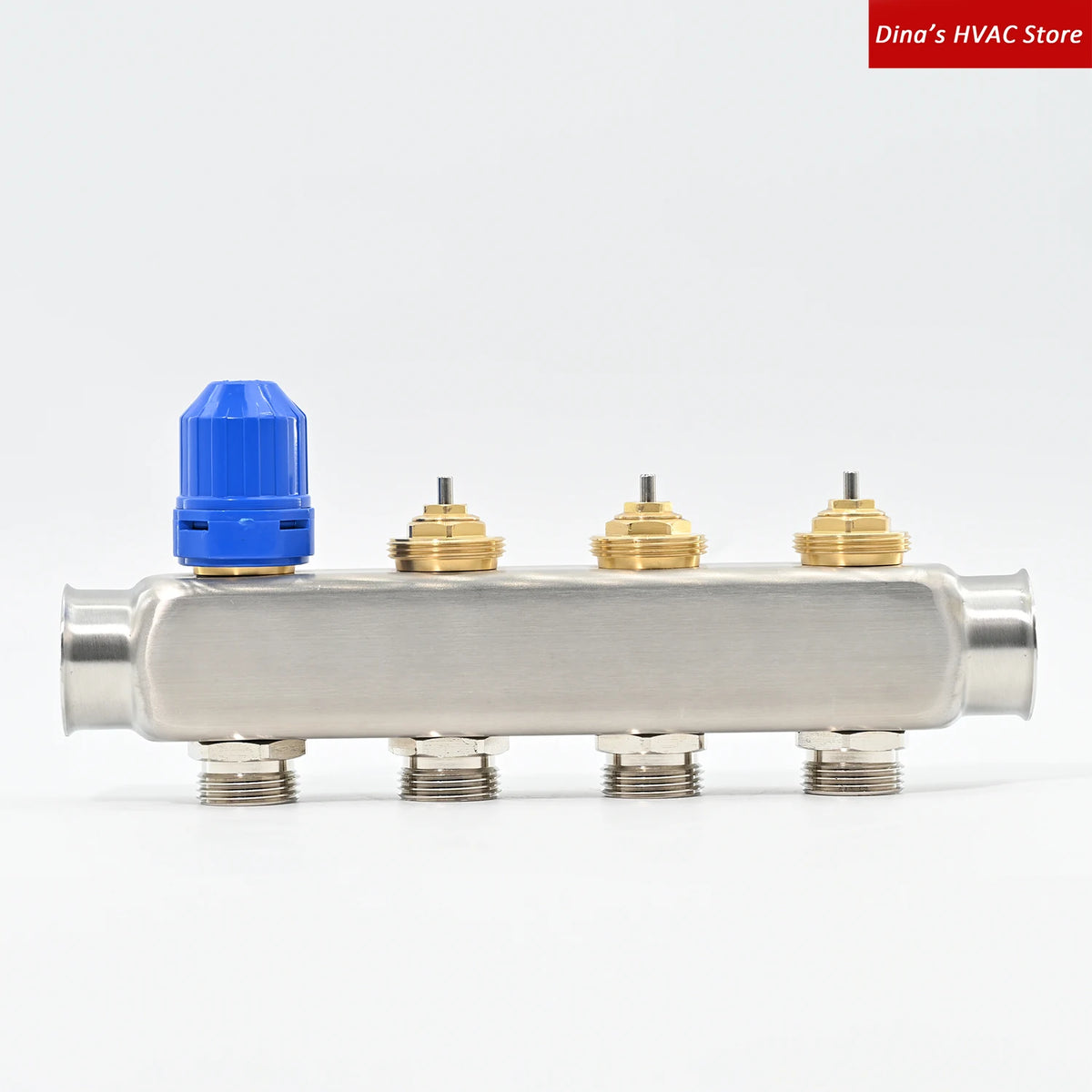

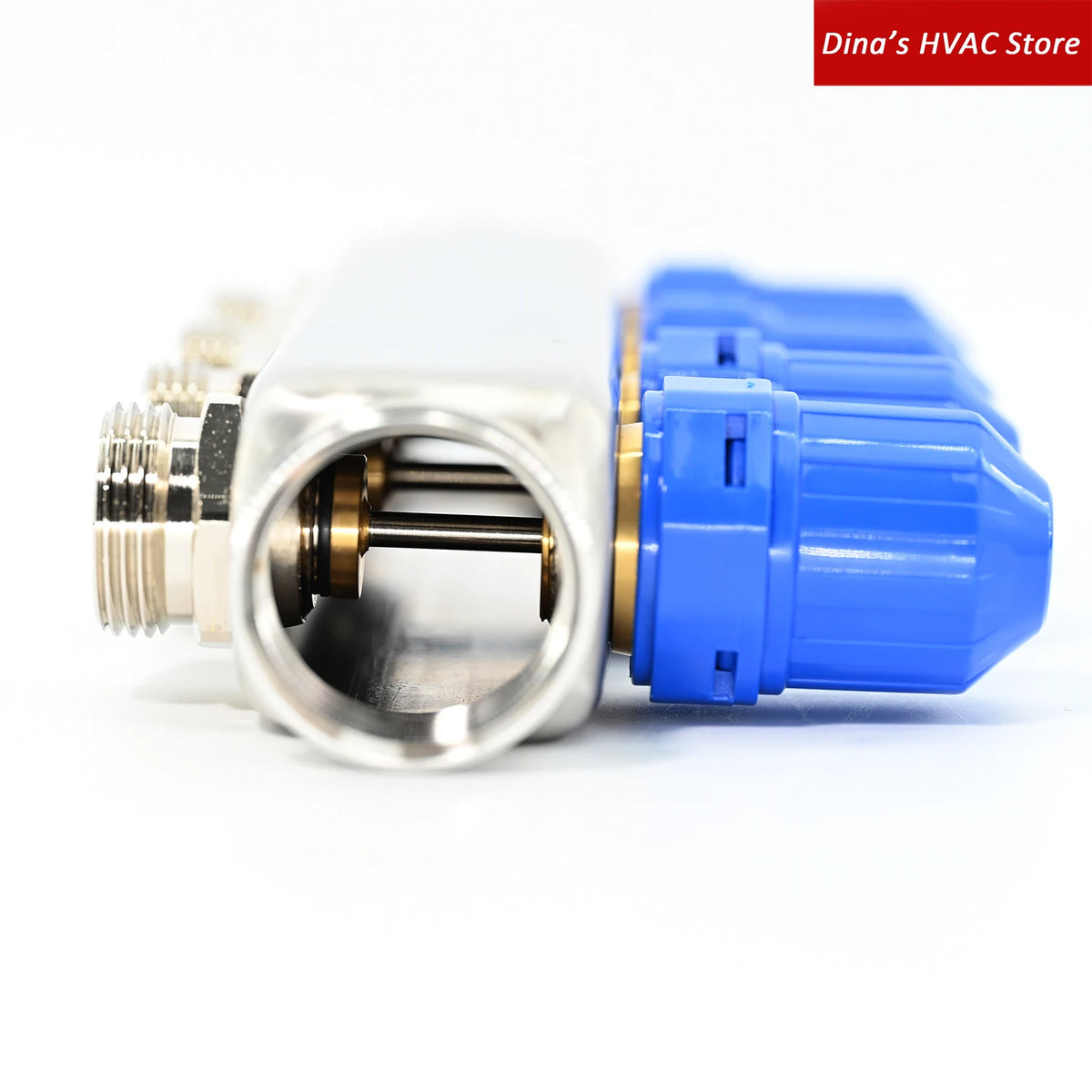

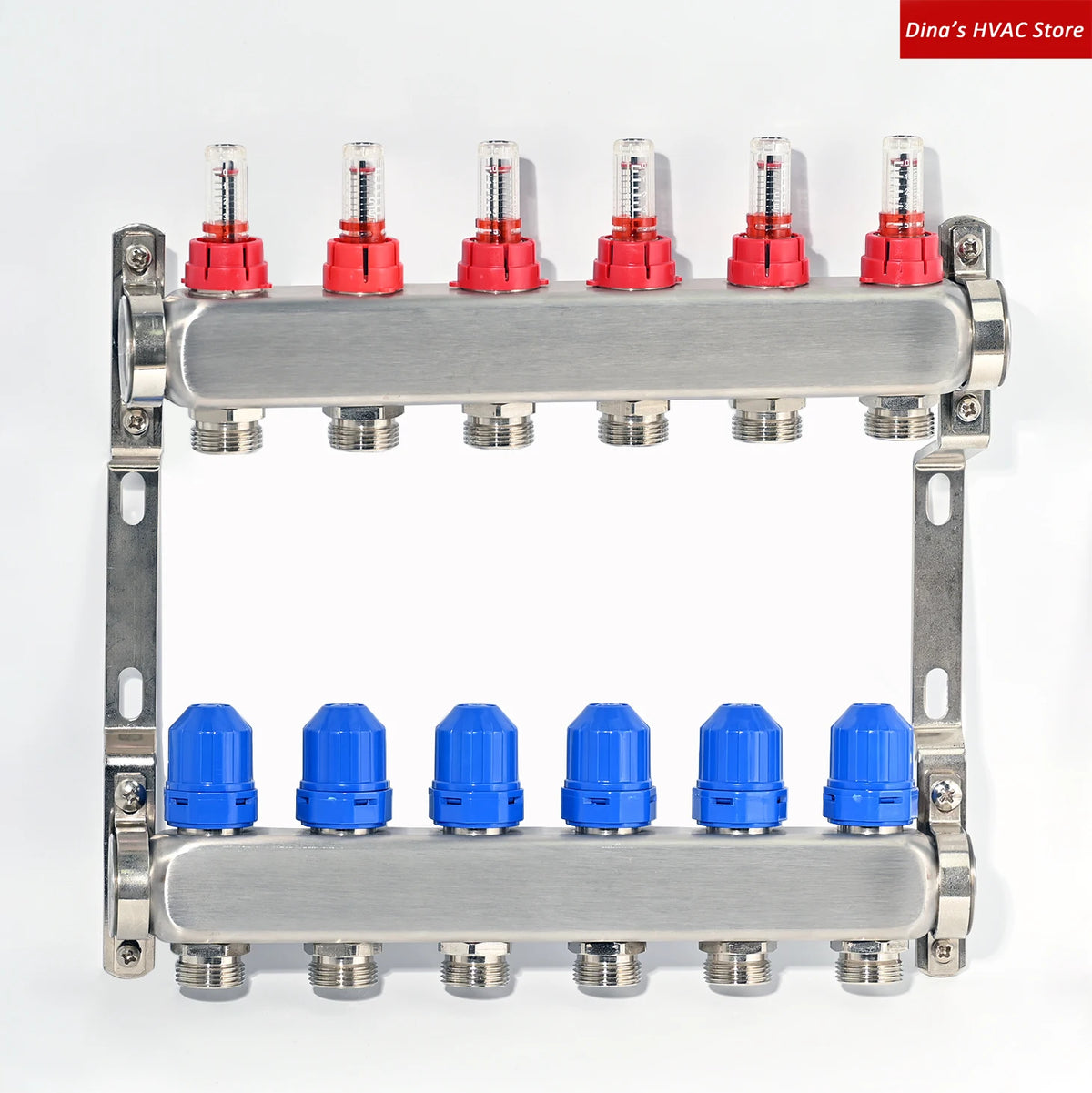

Manifold composed of:

-Delivery manifold complete with flow meters and nipples with 3/4” Eurocone
-Return manifold complete with shut-off valves for electrothermal command and nipples with 3/4" Eurocone
- Brackets

Description：

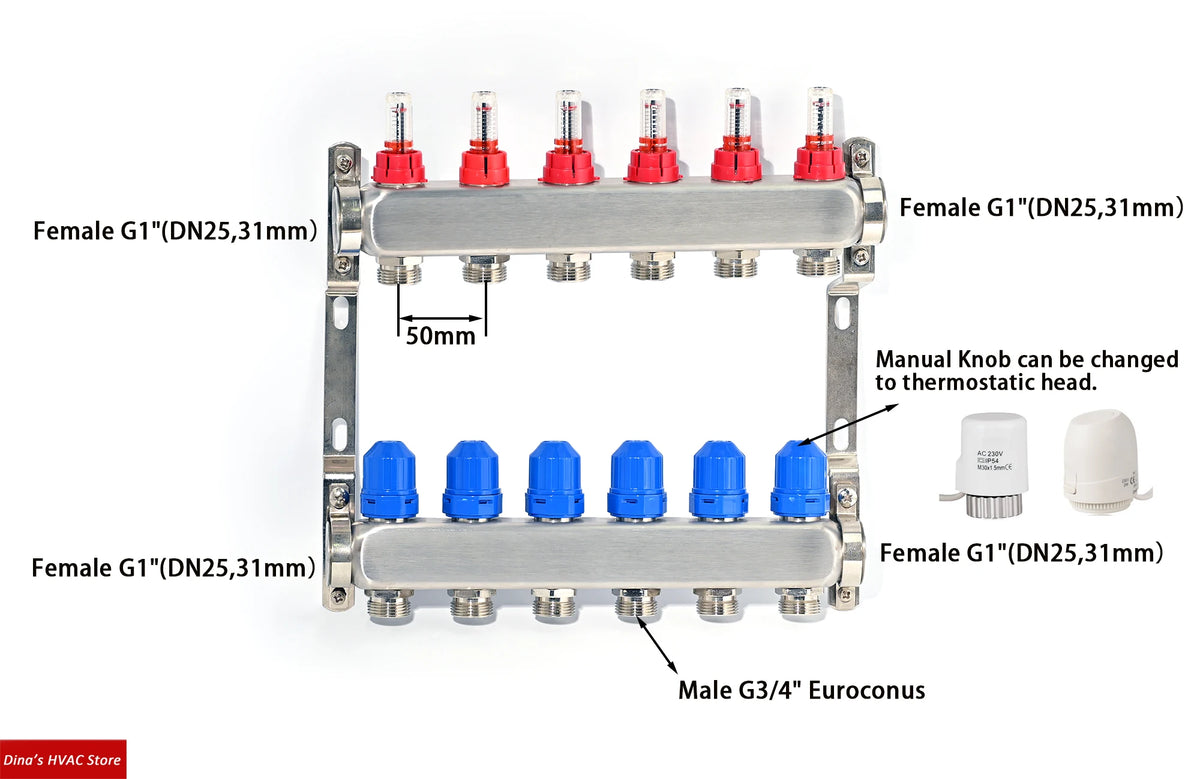

• G1 primary connection

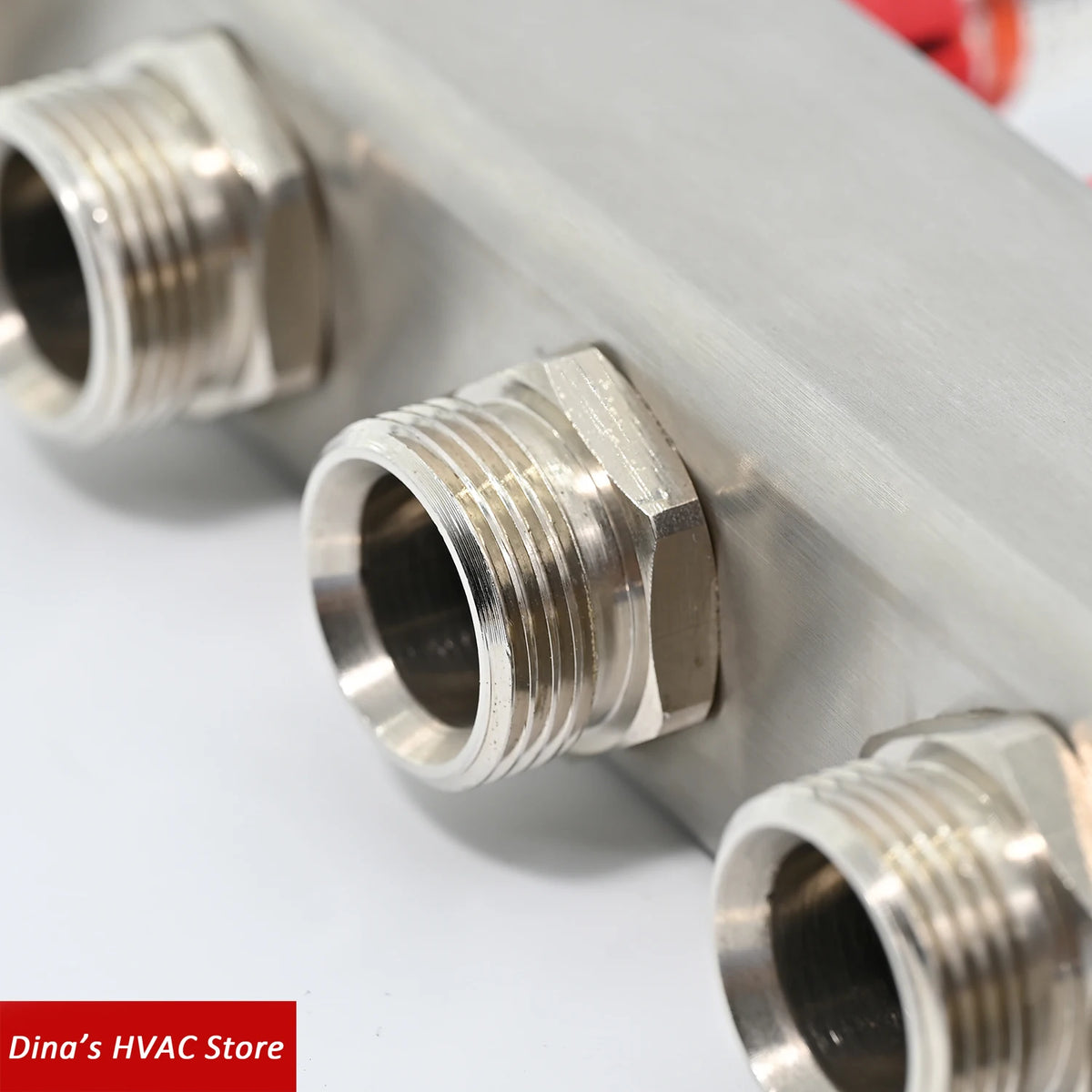

• Outlets with connections 3/4″ euroconus.
• Outlet interaxis: 50mm
• Thermostatic screws suitable for use with thermostatic heads and actuators.

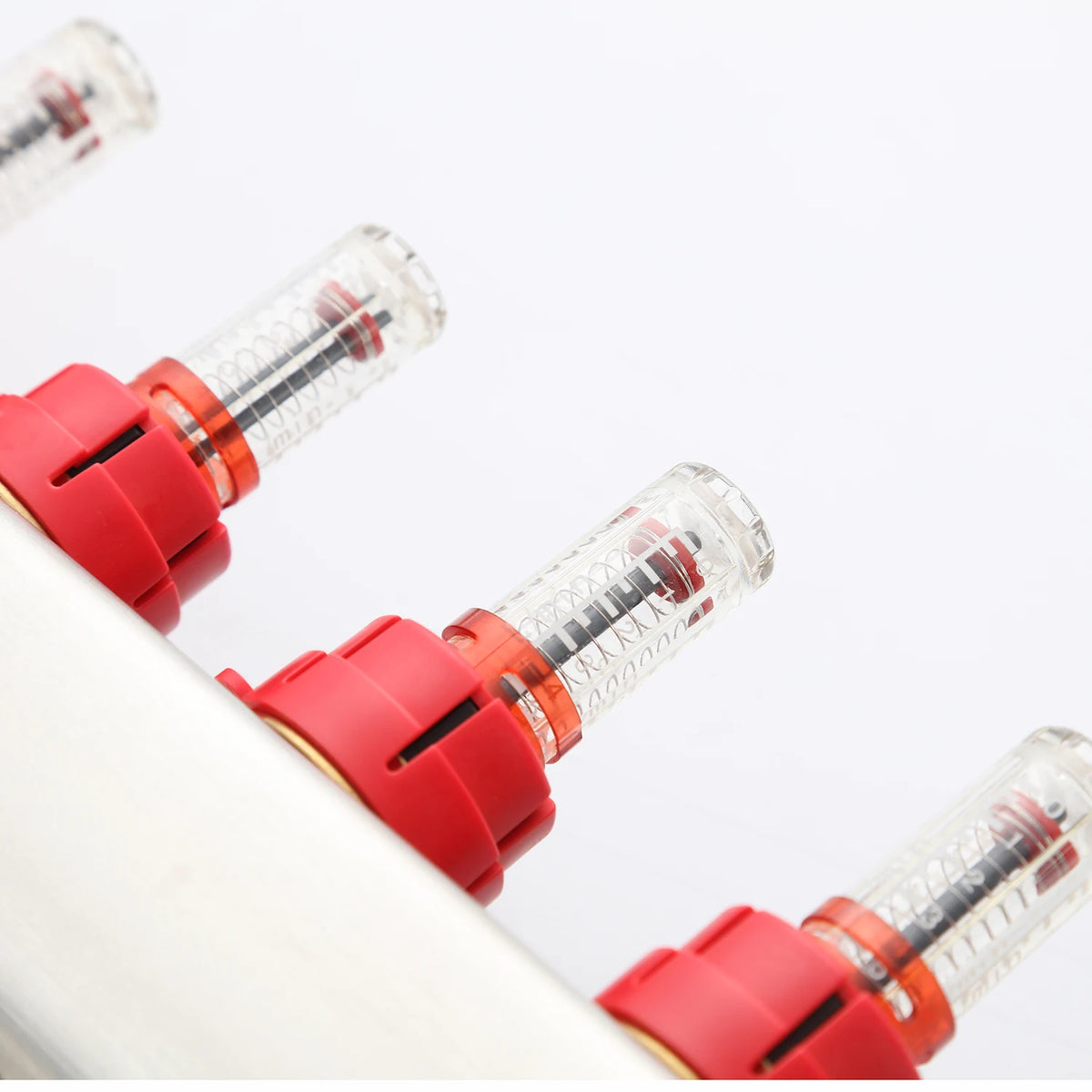

• Flowmeter scale: 0-5 L/min
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• Threads: ISO 228.
• Size: 1"x3/4" x 2~16way

Material：

Main tube:Stainless steel AISI304
Thermostatic screw body:Brass
Stem of thermostatic screw:stainless steel AISI304
Screw with double sealing o-ring
Flowneter：Brass+PA
Nipple（connections 3/4" euroconus) : Stainless steel AISI304
Bracket:Steel

Dimension:
