Specification:

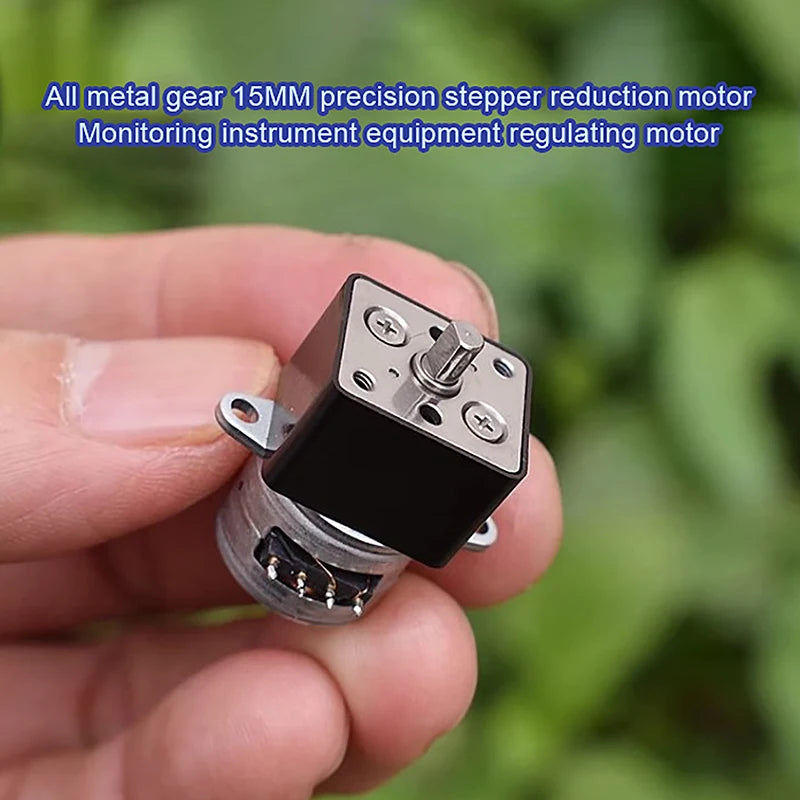

Micro stepper reducer motor, all metal gear reducer, with a reduction ratio of approximately 1:34.75,

approximately 695 pulse signals output shaft rotation of 360 degrees, using a 15mm 2-phase 4-wire stepper motor (which requires an external driver to operate).

This type of miniature stepper motor is commonly used in monitoring equipment, communication equipment, and precision instruments.

Attention: The stepper motor requires an external stepper motor driver to operate normally.

If it is directly connected to power, it cannot operate. This motor is a 2-phase 4-wire stepper motor.

Description:

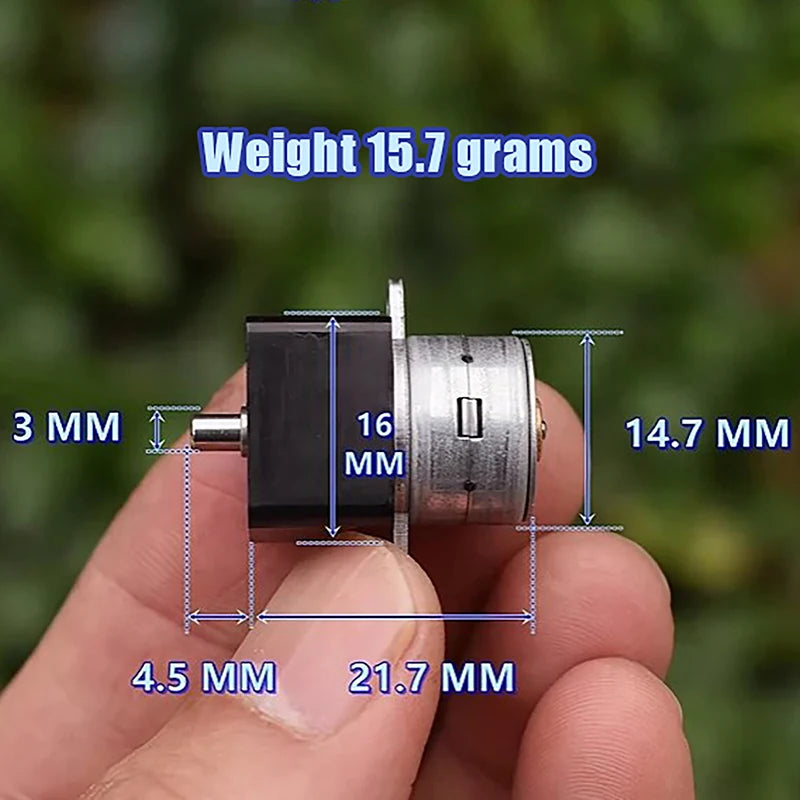

1. Motor diameter: 14.8mm

2. Motor length: 21.7mm (motor+gearbox)

3. Output shaft diameter: 3.0mm (D shaft 2.5mm)

4. Output shaft length: 4.4mm (include step height)

5. Gearbox gear ratio: about 1:34.75 (Approximately 695 pulses output shaft rotation 360 degrees)

6. Step angle: motor is 18 degree; output shaft is about 0.52 degree

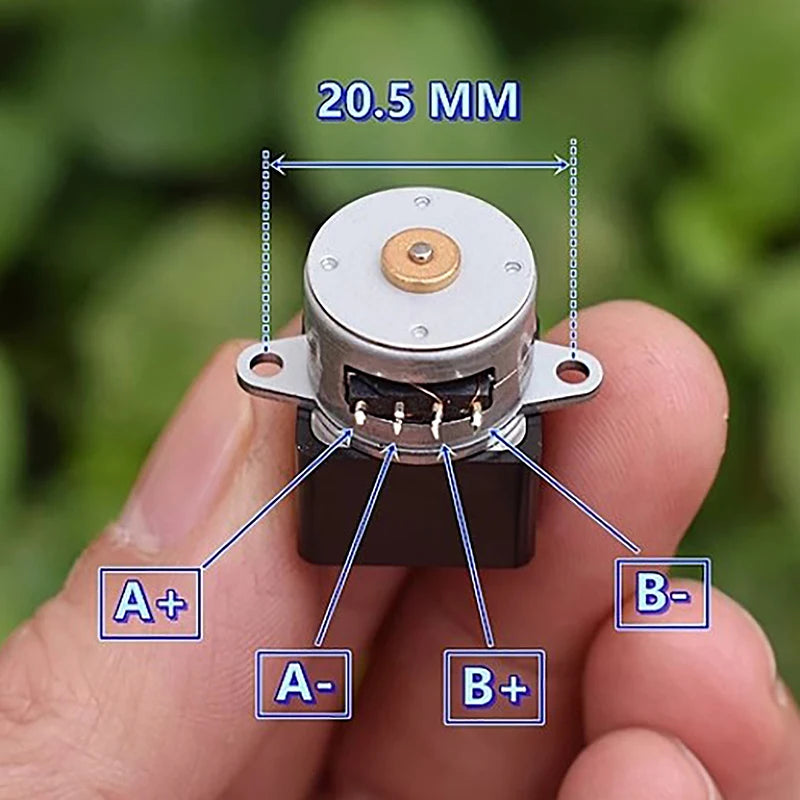

7. Motor type: 2-phase 4-wire stepper motor

8. Phase resistance: 19.7 ohms (6V short circuit current 280mA)

9. Material: Metal

Package List:

Motor * 1PC

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
